Tianjin Steel Frame Portable House


Price:
$75,000

Description

Product Description

CONTAINER HOUSE----New type green construction: The standard container is a container unit, a freedom combination (horizontal or vertical)like building blocks, space layout is flexible, the function is prefabricated, to make the functions various, application field diversified.

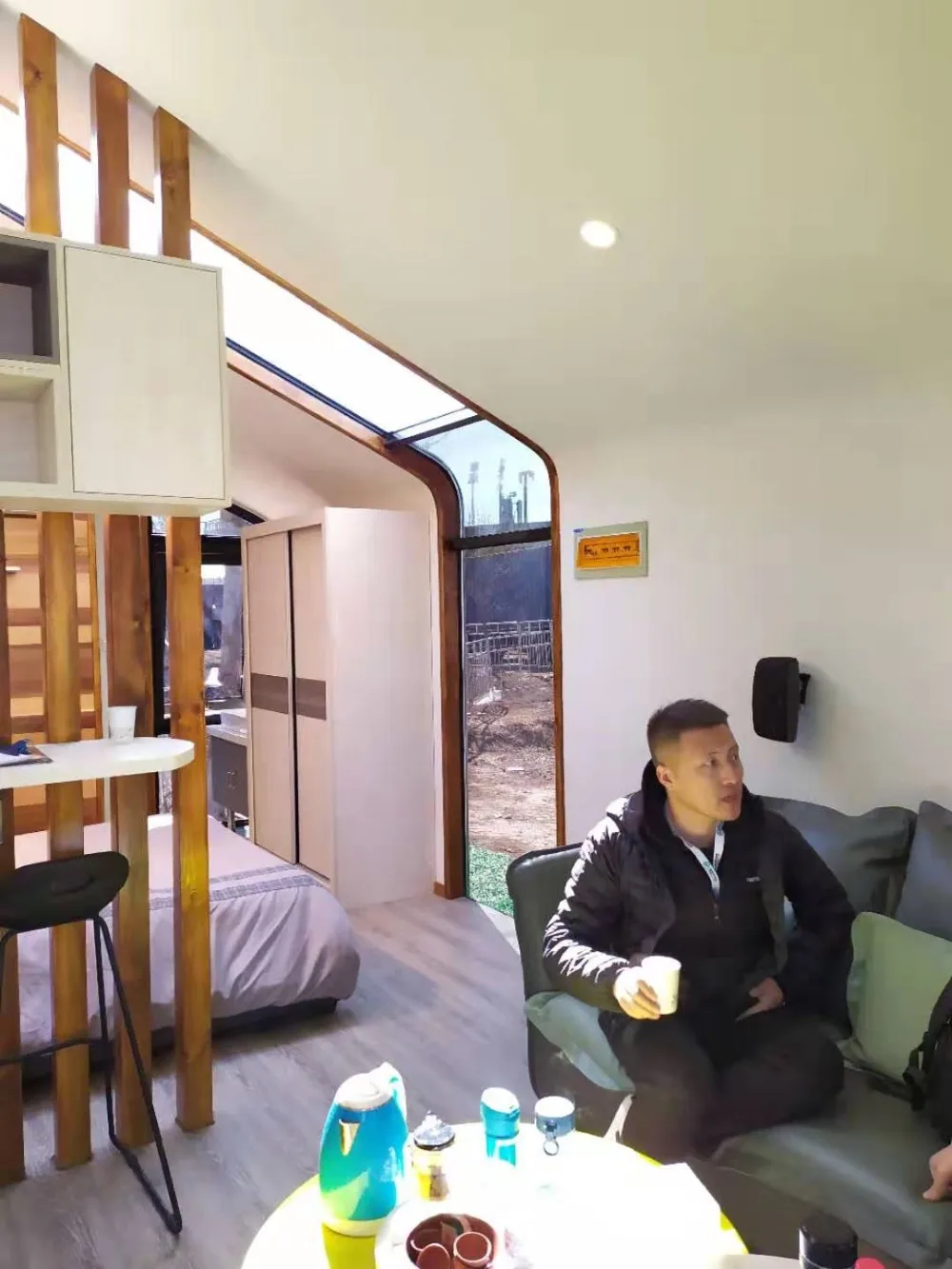

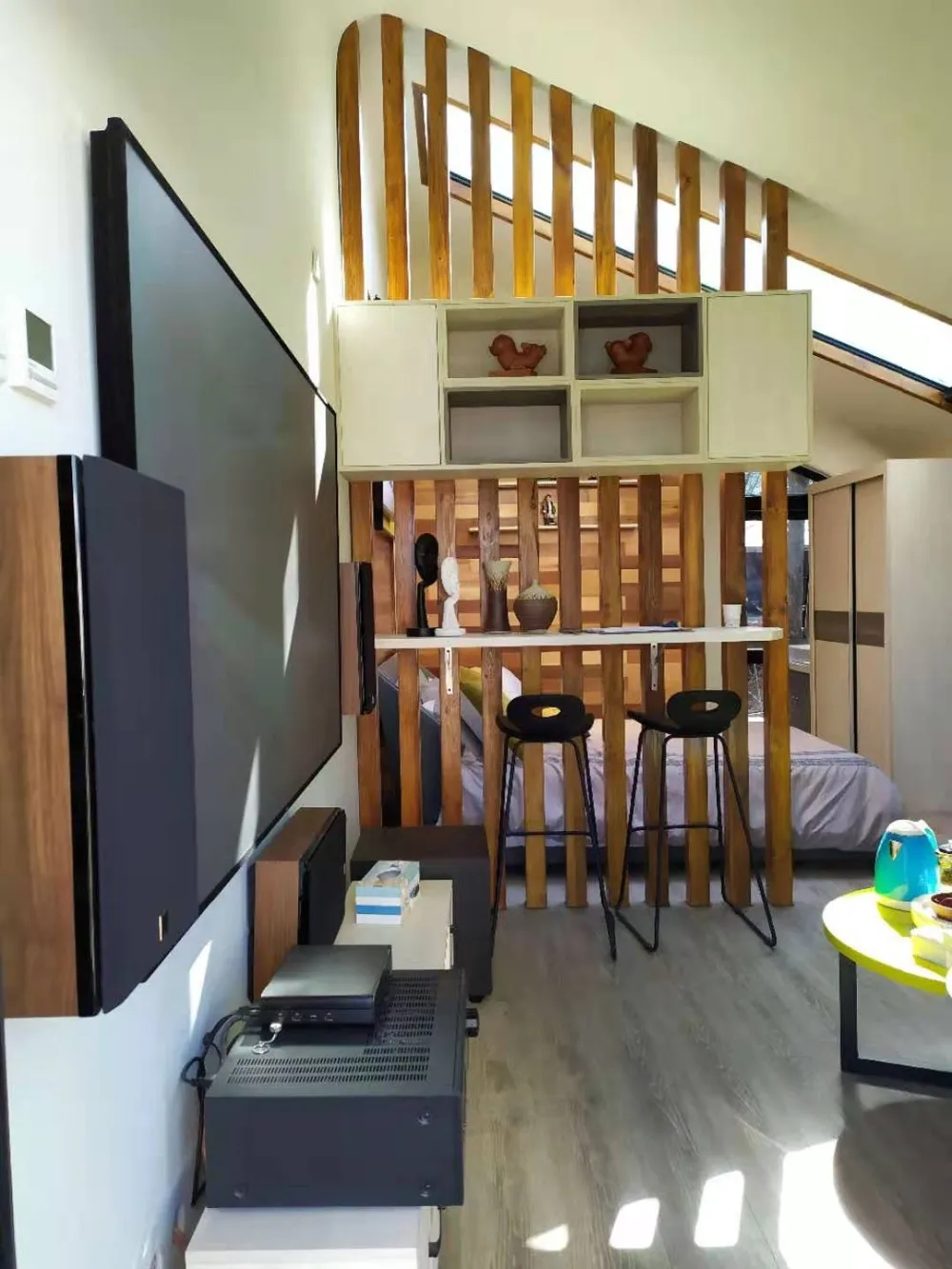

Products Show
Specification of GS Flat Pack




Standard container
(2.4m)
Length(mm)
6055(5845)

Width(mm)
2990(2780)

Height(mm)
2896(2590)

Roof type
Flat roof, organized drainage

Floor
≤3 storeys


Design Parameter
Service life
20 year

Floor live load
2.0KN/㎡

Roof live load
0.5KN/㎡

Wind load
0.6KN/㎡

Anti-seismic capacity
8 degree
Structure
Corner post
Galvanized cold roll shape steel,t=3.0mm, material:Q235B

Roof main beam
Galvanized cold roll shape steel,t=2.5mm, material:Q235B

Roof sub beam
Galvanized cold roll C type steel,t=1.5mm, material:Q235B

Floor main beam
Galvanized cold roll shape steel,t=3.5mm, material:Q235B

Floor sub beam
Galvanized cold roll C type steel,t=2.0mm, material:Q235B

Paint
Graphene electrostatic spraying

Roof
Roof panel
0.5mm thick aluminum zinc color steel sheet, color: White grey

Insulation
100mm thick glass wool blanket with single aluminium foil, density≥14kg/m³, fire rating: class A(non-combustible)

Ceiling
0.5mm thick aluminum zinc color steel sheet, color: White grey


Floor
Surface
75mm thick color steel glass wool sandwith panel; outer plate:0.45mm Orange peel aluminum zinc color steel sheet, color: ivory white, PE coating; inner plate:0.45mm alumium zine color steel flat plate, color:grey, PE coating

Baseplate
75mm thick glass wool, density≥64kg/m³;fire rating: class A(non-combustible)

Insulation(optional)
100mm thick glass wool blanket with single aluminium foil, density≥14kg/m³, fire rating: class A(non-combustible)

Sealing bottom plate(optional)
0.3mm thick galvanized plate
Wall
Thickness
75mm thick color steel glass wool sandwith panel; outer plate:0.45mm Orange peel aluminum zinc color steel sheet, color: ivory white, PE coating; inner plate:0.45mm alumium zine color steel flat plate, color:grey, PE coating

Insulation
75mm thick glass wool, density≥64kg/m³;fire rating: class A(non-combustible)
Door
Size(mm)
Width X Height=850*2030

Material
Steel door

Window
Size(mm)
Front and back window width X height=800*1100

Frame material
Plastic steel, Series 60

Glass
5mm hollow glass



Electricity
voltage
220V~250V

Wire
Genernal power wires: 6 m㎡,A/C wires:4 m㎡, Socket wires: 2.5 m㎡, lighting switch:1.5 m㎡

Breaker
High efficiency mini-breaker

Light tube
2 * Double tube fluorescent lamps,36W

Socket
4* five holes socket(10A),1* three holes A/C socket(16A)

Plumbing
Water service
PPR

Water drain
UPVC

Standard construction, use equipment and accessories conforming to national standards.

COMPANY INFORMATION

Yuantai Company is located in Baoping Exit of Beijing-Shenyang Expressway, Tianjin Baodi Economic Development Zone. It is the center of the "Beijing-Tianjin-Hebei Integration", Which is  Composed of The Three Major Cities Such As Beijin,Tianjin,Tangshan aND oNLY 90 Km Away From Tianjin Port ( No.1 Port Of North China).
Yuantai's independent engineering design is the core competitiveness of the company. It can provide customers with one-stop service of design and construction, and design and implement according to customers' different needs. With a professional eye, we provide customers with business plans in the project area, the layout of mobile villas, the number of rooms allocated, and the investment recovery period. Yuantai is willing to work with you to create a better tomorrow.
